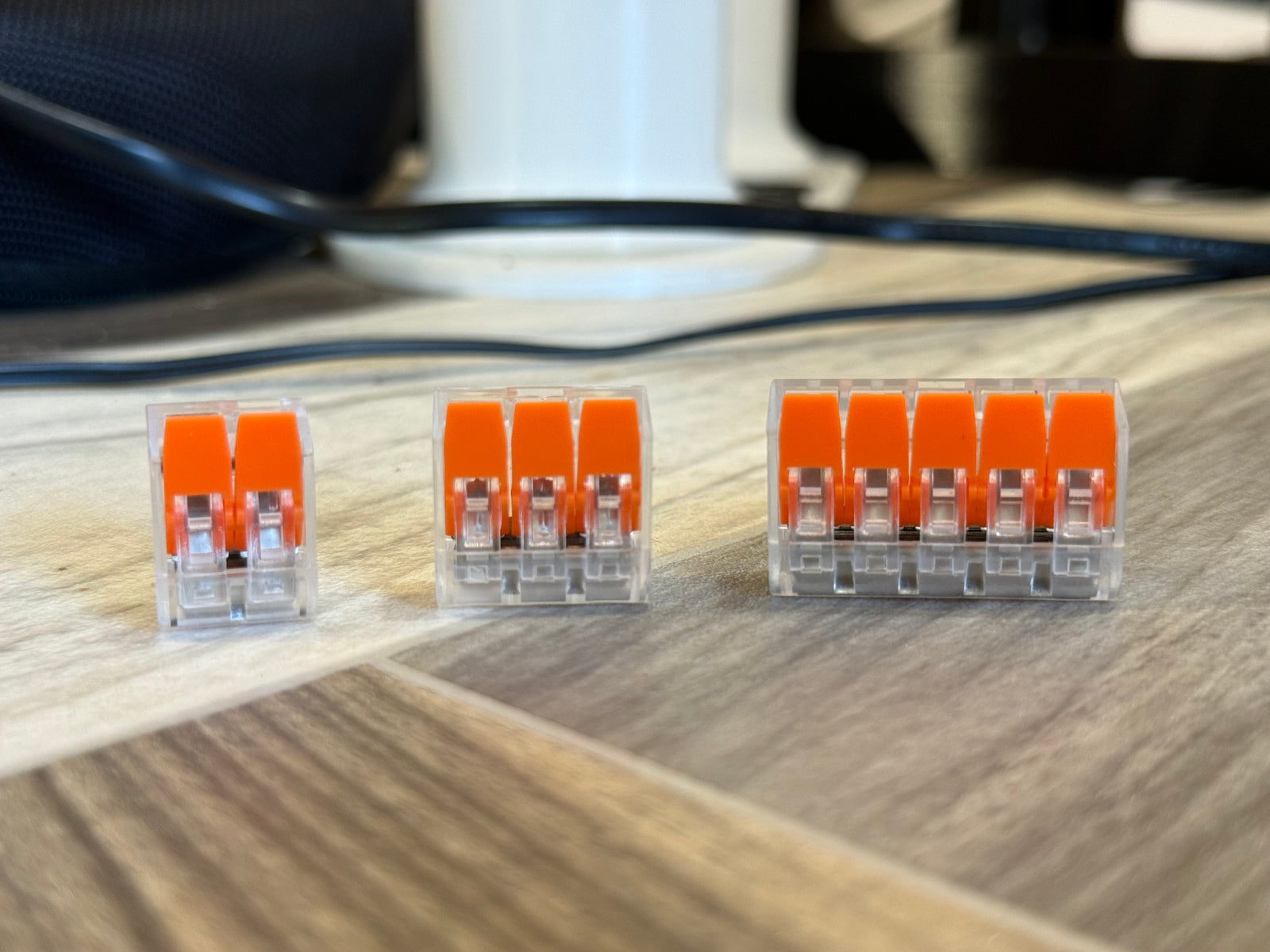

WAGO-style lever nut connectors laid out side by side showing the pole sizes

WAGO-Style Lever Wire Connectors 2, 3 & 5 Pole, 32A 450V

2 Pole
$1.10 NZD $1.99 NZD
Skip to product information
WAGO-style lever nut connectors laid out side by side showing the pole sizes
  • WAGO-style lever nut connectors laid out side by side showing the pole sizes

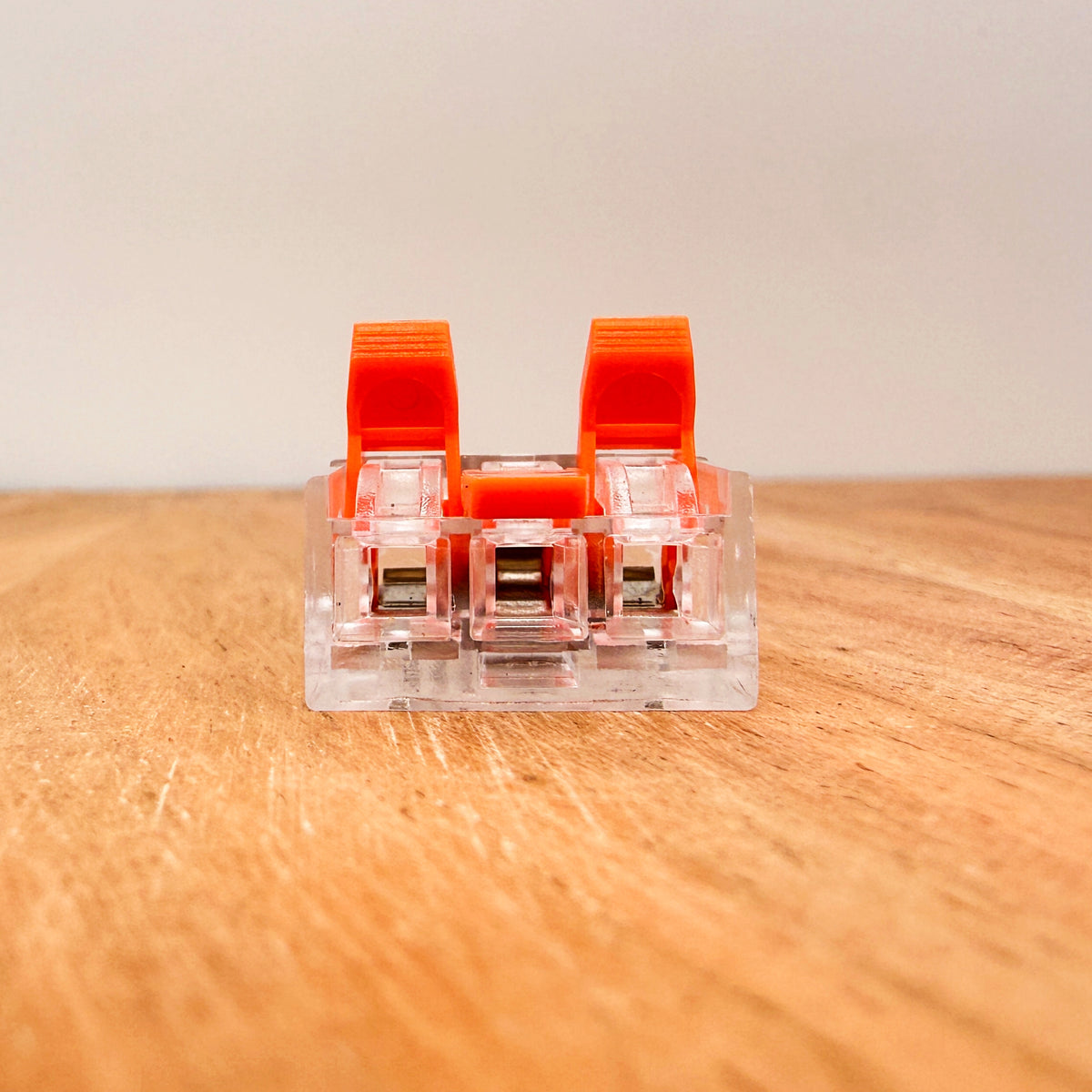

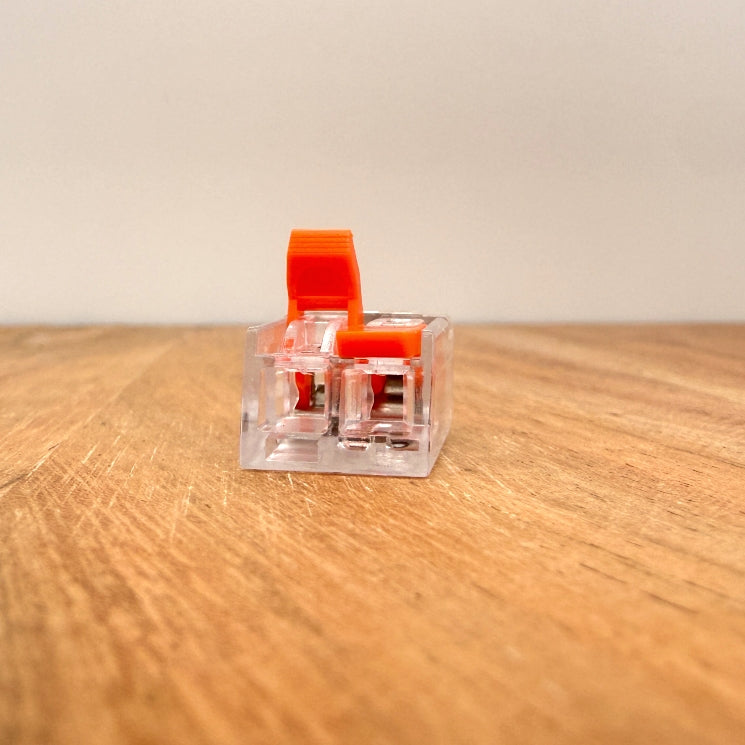

  • 3 pole WAGO-style lever nut connector with levers raised, showing the open wire ports

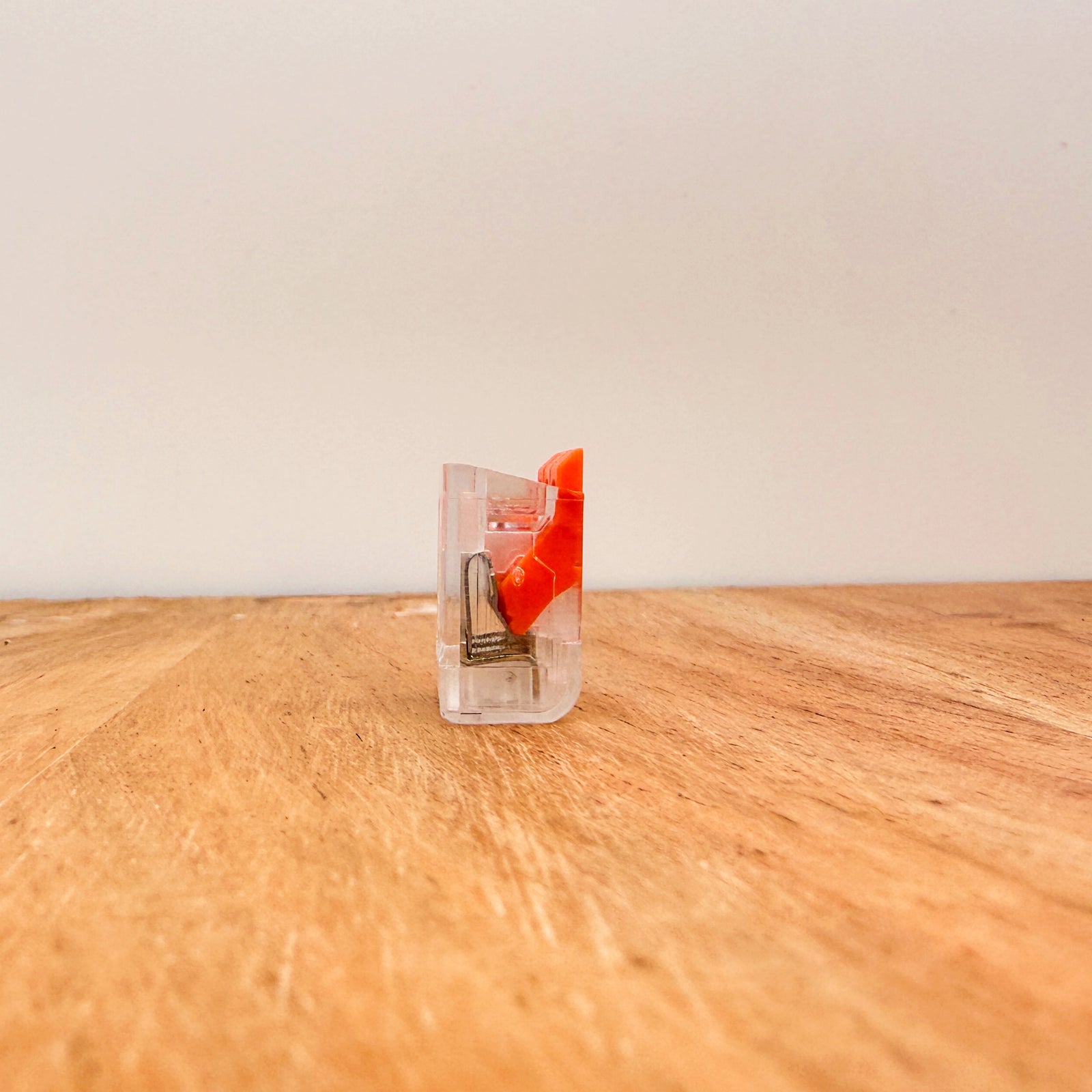

  • 2 pole WAGO-style lever connector, side view with the lever closed

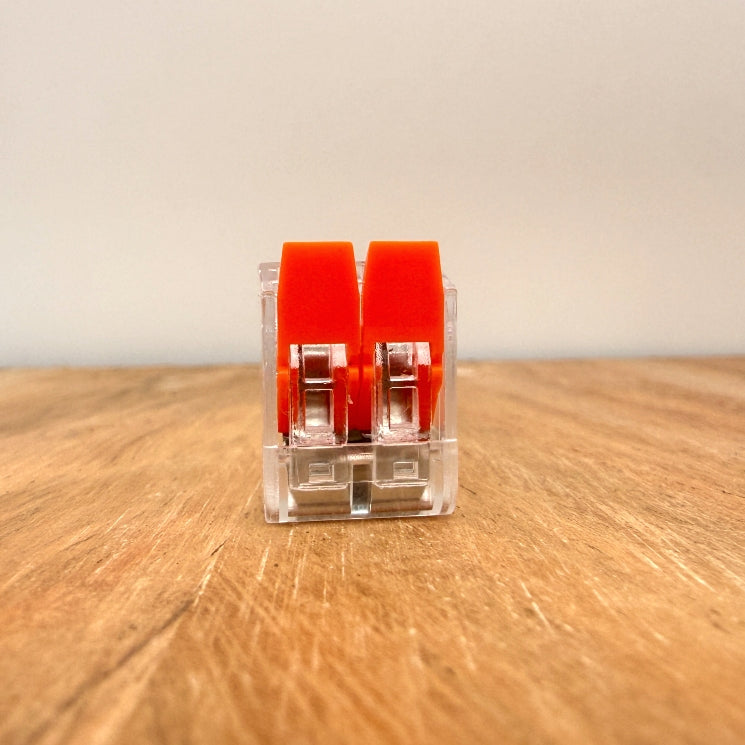

  • 2 pole WAGO-style lever connector, front view through the transparent polycarbonate housing
WAGO-Style Lever Wire Connectors 2, 3 & 5 Pole, 32A 450V
SKU: WAGO-STYLE-2P

WAGO-Style Lever Wire Connectors 2, 3 & 5 Pole, 32A 450V

$1.10 NZD $1.99 NZD Save 44%
5.0 1 review
Pole Size
Dispatch: Within 24 hours 7-day dispatch, excluding public holidays

NZ Post: 1-2 days urban · 2-4 days rural

Shipping from $5.99 urban / $9.99 rural.

Easy 30-day returns · 12-month warranty

Free Urban delivery on orders over $66
Urban $66 Rural $88

Discontinued unbranded range. These WAGO-style connectors are brand new and carry our standard 12-month warranty. For genuine WAGO parts, see the 221-412, 221-413 and 221-415.

Lever nut connectors splice wires in seconds with no twisting, no wire nuts and no tools. A flip-up lever on each port clamps solid, stranded or fine-stranded wire from 0.2 to 4mm², rated 32A at 450V, and opens again whenever you need to re-wire. Pick 2 pole to join two wires, 3 pole for three or 5 pole for five. Sold individually, so buy the count your job needs.

Specifications

TypeLever nut splicing connector
Poles available2, 3 and 5
Current rating32A
Voltage rating450V
Wire, solid and stranded0.2 to 4mm² (24 to 12 AWG)
Wire, fine stranded0.14 to 4mm²
Strip length11mm
ActuationTool free lever, no crimping
ReusableYes, open and re-wire any time
HousingTransparent polycarbonate
Operating temperatureUp to 85°C
Sold asSingle connector

What's in the box

1×
Lever connector in your chosen pole count

2, 3 or 5 pole, sold individually. Add the quantity your project needs.

Great for

Lighting and downlight wiring
LED strip and sign connections
Junction box splices and branches
Appliance and fixture repairs
Caravan, boat and 12V accessory wiring
Bench testing and temporary joins

How to use

  1. Strip the wire

    Take about 11mm of insulation off each conductor.

  2. Lift the lever

    Flip the lever fully up to open the port.

  3. Insert and close

    Push the wire all the way in, then press the lever back down to clamp it.

  4. Check through the housing

    The clear body lets you confirm the copper is seated past the clamp. To re-wire, lift the lever again.

Note: These are unbranded WAGO-style connectors, not a WAGO product. Mains wiring in New Zealand must be carried out or certified by a registered electrician.
  • 5 stars: 1 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
D
Dave A.

Great product - used on motorhome to join fine pigtail to thicker gauge DC feed.

Frequently Asked Questions

Answers to the questions buyers ask most.

Why is this unbranded line discontinued?
We have standardised on the genuine WAGO 221 range. These WAGO-style connectors are brand new and carry our standard 12-month warranty.
Are these genuine WAGO?
No. These are unbranded WAGO-style lever connectors that work the same way for less. If you want the real thing we stock the genuine WAGO 221-412 (2 pole), 221-413 (3 pole) and 221-415 (5 pole).
What is the difference between 2, 3 and 5 pole?
The pole count is the number of wires the connector joins together. A 2 pole joins two wires, a 3 pole joins three and a 5 pole joins five. They are sold individually, so pick the count your splice needs.
What wire can they take?
Solid and stranded from 0.2 to 4mm2 (about 24 to 12 AWG), and fine-stranded from 0.14mm2. You can mix different wire types and sizes in one connector. Strip about 11mm.
Can I reuse them?
Yes. Lift the lever to release a wire and re-clamp it as often as you like, which makes them handy for testing and temporary joins.
Are they safe for mains wiring?
They are rated 32A at 450V for solid and stranded conductors, but they are unbranded and not a WAGO product. Mains wiring in New Zealand must be carried out or certified by a registered electrician.
Does the standard warranty apply?
Yes. These connectors are brand new and carry our standard 12-month warranty.
